TDK电感介绍
本文介绍TDK电感生产厂家TDK电子、TDK电感官网、TDK电感规格书、TDK电感种类、TDK电感产品目录、TDK电感代理商等TDK电感相关信息
目录
1、TDK电感生产厂家TDK电子简介
2、TDK电感种类
3、TDK电感产品目录
4、TDK电感规格书
5、TDK电感官网和联系方式

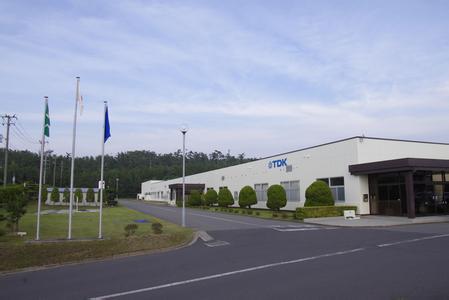

1、TDK电感生产厂家TDK电子简介
TDK创业于1935年，以实现世界最初的磁性材料“铁氧体“的工业化生产为创业宗旨，欲不断创造全新价值、为人类做出积极贡献。始终以从材料开发电子元件为宗旨，使用以铁氧体为起点的磁性材料与材料技术，为世界提供各种独创电子元件。
TDK的主要产品为被动元件，即广泛使用于铁氧体磁芯、线圈、变压器、陶瓷电容器、传感器等电气、电子设备中的各类基础元件。以积累至今的高新技术与核心技能为基础，积极研发与制造磁头、磁铁、电源、电池等设备。
2、TDK电感种类介绍
TDK电感分为一般等级和车载等级两大类
A.一般等级的有：
a.一般等级的高频电路用电感器
b.一般等级的普通电路用电感器
c.一般等级的去耦电路用电感器
d.一般等级的电源电路用电感器
B.车载等级的：
a.车载等级的高频电路用电感器
b.车载等级的普通电路用电感器
c.车载等级的去耦电路用电感器
d.车载等级的电源电路用电感器
3、TDK电感产品目录
一般等级 高频电路用电感器
| 产品照片 | 特点 | 系列、类型 | L xW 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
 |   | MHQ0402P | 0.4x0.2mm [EIA 01005] | 0.26mm | 0.2 to 33nH | 0.13 to 0.32A |  675 KB | 82 KB | 220 KB |  |
| MHQ0603P | 0.6x0.3mm [EIA 0201] | 0.4mm | 0.6 to 39nH | 0.16 to 1A | ||||||
| MHQ1005P | 1.0x0.5mm [EIA 0402] | 0.6mm | 0.7 to 150nH | 0.11 to 1.2A | ||||||
 | | MLG0402P | 0.4x0.2mm [EIA 01005] | 0.22mm | 0.2 to 33nH | 0.12 to 0.35A | 387 KB | 89 KB | 224 KB | |
| MLG0402Q | ||||||||||
| MLG0603P | 0.6x0.3mm [EIA 0201] | 0.33mm | 0.6 to 120nH | 0.08 to 1A | ||||||
 | | MLG0603S | 0.6x0.3mm [EIA 0201] | 0.33mm | 0.3 to 180nH | 0.05 to 0.6A | 416 KB | 89 KB | 224 KB | |
| MLG1005S | 1.0x0.5mm [EIA 0402] | 0.55mm | 0.3 to 390nH | 0.05 to 1A | ||||||
| MLG1608 | 1.6x0.8mm [EIA 0603] | 0.95mm | 1 to 1,000nH | 0.07 to 0.6A | ||||||
 |  | MLK0603 | 0.6x0.3mm [EIA 0201] | 0.33mm | 1 to 33nH | 0.1 to 0.3A | 244 KB | 153 KB | 219 KB | |
| MLK1005 | 1.0x0.5mm [EIA 0402] | 0.6mm | 1 to 330nH | 0.07 to 0.5A |
一般等级 普通电路用电感器
| 产品照片 | 特点 | 系列、类型 | L xW 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
 |   | MLF1005 | 1.0x0.5mm [EIA 0402] | 0.55mm | 0.1 to 2.2uH | 0.03 to 0.18A | 3 MB | 82 KB | 219 KB | |
| MLF1608 | 1.6x0.8mm [EIA 0603] | 0.95mm | 0.047 to 33uH | 0.002 to 0.2A | ||||||
| MLF2012 | 2.0x1.2mm [EIA 0805] | 1.05, 1.45mm | 0.047 to 100uH | 0.002 to 0.3A | ||||||
 |  | NLV25-PF | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.01 to 100uH | 0.06 to 0.53A | 272 KB | 155 KB | 220 KB | |
| NLV32-PF | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.01 to 470uH | 0.025 to 0.45A | ||||||
| NLV25-EF | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.01 to 100uH | 0.06 to 0.53A | 272 KB | 153 KB | 220 KB | | ||
| NLV32-EF | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.01 to 470uH | 0.025 to 0.45A | ||||||
| NL453232 | 4532 [1812 inch] | 3.4mm | 1 to 1,000uH | 0.03 to 0.45A | 283 KB | 156 KB | 220 KB | | ||
| NL565050 | 5650 [2220 inch] | 5.3mm | 1,200 to 10,000uH | 0.025 to 0.075A |
一般等级 去耦电路用电感器
| 产品照片 | 特点 | 系列、类型 | L xW 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
 | | MLZ1005 | 1.0x0.5mm [EIA 0402] | 0.55mm | 0.47 to 2.2uH | 0.06 to 0.12A | 415 KB | 153 KB | 219 KB | |
| MLZ1608 | 1.6x0.8mm [EIA 0603] | 0.95mm | 0.1 to 22uH | 0.05 to 0.7A | ||||||
| MLZ2012 | 2.0x1.2mm [EIA 0805] | 1.05, 1.45mm | 0.1 to 100uH | 0.03 to 1A | ||||||
| | NLCV25-PF | 2.5x2.0mm [EIA 1008] | 1.9mm | 1 to 33uH | 0.12 to 0.475A | 625 KB | 156 KB | 220 KB | |
| NLCV32-PF | 3.2x2.5mm [EIA 1210] | 2.4mm | 1 to 330uH | 0.07 to 1A | ||||||
| NLCV25-PFR | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.1 to 10uH | 0.36 to 1.89A | ||||||
| NLCV32-PFR | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.1 to 10uH | 0.6 to 2.85A | ||||||
| NLCV25-EF | 2.5x2.0mm [EIA 1008] | 1.9mm | 1 to 33uH | 0.12 to 0.475A | 624 KB | 154 KB | 220 KB | | ||
| NLCV32-EF | 3.2x2.5mm [EIA 1210] | 2.4mm | 1 to 330uH | 0.07 to 1A | ||||||
| NLCV25-EFR | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.1 to 10uH | 0.36 to 1.89A | ||||||
| NLCV32-EFR | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.1 to 10uH | 0.6 to 2.85A | ||||||
| NLC453232 | 4532 [1812 inch] | 3.4mm | 1 to 330uH | 0.09 to 1.05A | 507 KB | 155 KB | 220 KB | | ||
| NLC565050 | 5650 [2220 inch] | 5.3mm | 1 to 1,000uH | 0.085 to 1.8A | ||||||
| NLFV25-PF | 2.5x2.0mm [EIA 1008] | 1.9mm | 1 to 100uH | 0.04 to 0.455A | 290 KB | 156 KB | 220 KB | | |
| NLFV25-EF | 2.5x2.0mm [EIA 1008] | 1.9mm | 1 to 100uH | 0.04 to 0.455A | 415 KB | 153 KB | 220 KB | | ||
| NLFV32-EF | 3.2x2.5mm [EIA 1210] | 2.4mm | 1 to 1,000uH | 0.02 to 0.75A |
一般等级 电源电路用电感器
| 产品照片 | 特点 | 系列、类型 | L x W 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
 |  | SPM3012 | 3.2x3.0mm | 1.2mm | 1 to 4.7uH | 1.3 to 2.8A | 390 KB | 153 KB | 220 KB | |
| SPM3015 | 1.5mm | 0.47 to 4.7uH | 1.8 to 4.3A | |||||||
| SPM3020 | 2.0mm | 1.9 to 4.8A | ||||||||
| SPM4012 | 4.4x4.1mm | 1.2mm | 2 to 5.6A | |||||||
| SPM4015 | 1.5mm | 1.8 to 5.5A | ||||||||
| SPM4020 | 2.0mm | 2.2 to 6.1A | ||||||||
| SPM5012 | 5.4x5.1mm | 1.2mm | 1 to 2.2uH | 2.7 to 4.1A | ||||||
| SPM5015 | 1.5mm | 0.47 to 4.7uH | 2.9 to 7A | |||||||
| SPM5020 | 2.0mm | 1 to 4.7uH | 3.4 to 6A | |||||||
| SPM5030 | 5.2x5.0mm | 3.0mm | 0.2 to 1uH | 8.5 to 21A | ||||||
| SPM6530 | 7.1x6.5mm | 0.25 to 4.7uH | 5.6 to 23A | |||||||
 | | MLP1005 | 1.0x0.5mm [EIA 0402] | 0.75mm | 1uH | 0.5A | 442 KB | 153 KB | 219 KB | |
| MLP1608 | 1.6x0.8mm [EIA 0603] | 0.75, 0.95mm | 0.47 to 2.2uH | 0.6 to 0.8A | ||||||
| MLP2012 | 2.0x1.2mm [EIA 0805] | 0.55, 1.0mm | 0.47 to 4.7uH | 0.6 to 1.3A | ||||||
| MLP2016 | 2.0x1.6mm [EIA 0806] | 1.0mm | 0.47 to 4.7uH | 0.8 to 1.7A | ||||||
| MLP2520 | 2.5x2.0mm [EIA 1008] | 1.0, 1.2mm | 0.47 to 10uH | 0.7 to 2.3A | ||||||
 | | VLS201610HBX-1 | 2.0x1.6mm | 1.0mm | 0.24 to 10uH | 0.61 to 3.74A | 277 KB | 158 KB | 366 KB | |
| VLS201612HBX-1 | 1.2mm | 0.67 to 4.25A | ||||||||
| VLS252010HBX-1 | 2.5x2.0mm | 1.0mm | 0.68 to 3.91A | |||||||
| VLS252012HBX-1 | 1.2mm | 0.85 to 4.25A | ||||||||
 | | VLS201610CX | 2.0x1.6mm | 1.0mm | 0.24 to 22uH | 0.38 to 3.08A | 296 KB | 158 KB | 365 KB | |
| VLS201612CX | 1.2mm | 1 to 22uH | 0.4 to 1.87A | |||||||
| VLS252010CX | 2.5x2.0mm | 1.0mm | 0.47 to 22uH | 0.45 to 3.08A | ||||||
| VLS252012CX | 1.2mm | 1 to 22uH | 0.54 to 2.38A | |||||||
 | | VLS201610E | 2.0x1.6mm | 0.95mm | 0.47 to 10uH | 0.4 to 1.85A | 833 KB | 154 KB | 220 KB | |
| VLS201612E | 1.2mm | 0.47 to 10uH | 0.47 to 1.9A | |||||||
| VLS2010E | 2.0x2.0mm | 1.0mm | 0.56 to 22uH | 0.33 to 2A | ||||||
| VLS2012E | 1.2mm | 0.47 to 22uH | ||||||||
| VLS252008E | 2.5x2.0mm | 0.8mm | 0.47 to 10uH | 0.41 to 1.2A | ||||||
| VLS252010E | 1.0mm | 0.55 to 2.5A | ||||||||
| VLS252012E | 1.2mm | 0.47 to 10uH | 0.59 to 2.15A | |||||||
| VLS252015E | 1.5mm | 1 to 10uH | 0.66 to 1.75A | |||||||
| VLS3010E | 3.0x3.0mm | 1.0mm | 1 to 22uH | 0.38 to 1.6A | ||||||
| VLS3012E | 1.2mm | 1 to 47uH | 0.31 to 1.9A | |||||||
| VLS3015E | 1.5mm | 1 to 47uH | 0.32 to 2A | |||||||
| VLS4012E | 4.0x4.0mm | 1.2mm | 1 to 47uH | 0.41 to 2.5A | ||||||
 | | VLF252010MT | 2.5x2.0mm | 1.0mm | 0.47 to 22uH | 0.26 to 1.84A | 747 KB | 82 KB | 220 KB | |
| VLF252012MT | 1.2mm | 0.28 to 1.89A | ||||||||
| VLF252015MT | 1.5mm | 0.28 to 1.85A | ||||||||
| VLF302510MT | 3.0x2.5mm | 1.0mm | 1 to 22uH | 0.38 to 2A | ||||||
| VLF302512MT | 1.2mm | 0.43 to 1.91A | ||||||||
| VLF302515MT | 1.5mm | 0.47 to 22uH | 0.41 to 2.88A | |||||||
| VLF403210MT | 4.0x3.2mm | 1.0mm | 1 to 22uH | 0.46 to 2.23A | ||||||
| VLF403212MT | 1.2mm | 0.54 to 3A | ||||||||
| VLF403215MT | 1.5mm | 0.65 to 3.01A | ||||||||
| VLF504010MT | 5.0x4.0mm | 1.0mm | 0.68 to 22uH | 0.61 to 3.4A | ||||||
| VLF504012MT | 1.2mm | 1 to 22uH | 0.8 to 3.67A | |||||||
| VLF504015MT | 1.5mm | 0.93 to 3.61A | ||||||||
 | | VLCF4018-2 | 4.0x4.0mm | 1.8mm | 1.6 to 47uH | 0.34 to 1.72A | 649 KB | 154 KB | 220 KB | |
| VLCF4020 | 2.0mm | 1.8 to 100uH | 0.26 to 1.97A | |||||||
| VLCF4024-2 | 2.4mm | 1.2 to 100uH | 0.3 to 2.46A | |||||||
| VLCF4028-2 | 2.8mm | 1.2 to 470uH | 0.14 to 2.71A | |||||||
| VLCF5020 | 5.0x5.0mm | 2.0mm | 1.8 to 100uH | 0.27 to 2.07A | ||||||
| VLCF5020-1 | 2.2 to 47uH | 0.51 to 2.62A | ||||||||
| VLCF5020-3 | 2.2 to 3.3uH | 2.02 to 2.62A | ||||||||
| VLCF5024-2 | 2.4mm | 1.8 to 100uH | 0.28 to 1.86A | |||||||
| VLCF5028-2 | 2.8mm | 1.3 to 470uH | 0.14 to 2.56A | |||||||
 | | CLF6045 | 5.9x6.2mm | 4.8mm | 1 to 470uH | 0.3 to 4.5A | 3 MB | 153 KB | 220 KB | |
| CLF7045 | 6.9x7.2mm | 0.37 to 5.2A | ||||||||
| CLF10040 | 9.7x10.0mm | 4.1mm | 0.44 to 6.3A | |||||||
| CLF12555 | 12.1x12.5mm | 5.85mm | 0.6 to 7.3A | |||||||
 | | SLF6025 | 6.0x6.0mm | 2.7mm | 4.7 to 100uH | 0.33 to 1.5A | 898 KB | 154 KB | 220 KB | |
| SLF6028 | 3.0mm | 4.7 to 220uH | 0.26 to 1.6A | |||||||
| SLF6045 | 4.8mm | 1.5 to 22uH | 1.1 to 4A | |||||||
| SLF7032 | 7.0x7.0mm | 3.4mm | 3.3 to 1,000uH | 0.13 to 1.9A | ||||||
| SLF7045 | 4.8mm | 3.3 to 1,000uH | 0.14 to 2.3A | |||||||
| SLF7055 | 5.8mm | 1.5 to 22uH | 1.7 to 4A | |||||||
| SLF10145 | 10.1x10.1mm | 4.8mm | 3.3 to 1,500uH | 0.22 to 3.7A | ||||||
| SLF10165 | 6.8mm | 1.5 to 22uH | 2.4 to 6.8A | |||||||
| SLF12555 | 12.5x12.5mm | 5.8mm | 6 to 1,500uH | 0.29 to 3.6A | ||||||
| SLF12565 | 6.85mm | 2 to 220uH | 1 to 6.2A | |||||||
| SLF12575 | 7.85mm | 1.2 to 220uH | 1.3 to 8.2A | |||||||
 | | LTF5022 | 5.0x5.2mm | 2.2mm | 1.2 to 22uH | 0.9 to 4.2A | 215 KB | 153 KB | 220 KB | |
 | | RLF7030 | 7.3x6.8mm | 3.2mm | 1 to 6.8uH | 2.8 to 6.4A | 298 KB | 153 KB | 220 KB | |
| RLF12545 | 12.5x12.8mm | 4.7mm | 1.9 to 10uH | 5.1 to 10.5A | ||||||
| RLF12560 | 6.0mm | 1 to 10uH | 7.5 to 14.4A | |||||||
 | | VLP6045L | 6.8x4.5 mm | 4.5mm | 1 to 100uH | 0.8 to 6.5A | 263 KB | 153 KB | 220 KB | |
| VLP8040 | 8.6x8.7 mm | 4.0mm | 1 to 680uH | 0.3 to 7A | ||||||
 | | VLB7050 | 7.0x7.0 mm | 5.0mm | 90 to 150nH | 36A | 223 KB | 153 KB | 220 KB | |
| VLB10050 | 7.0x10.0 mm | 120 to 300nH | 31A | |||||||
| VLB12065 | 12.0x10.0 mm | 6.5mm | 200 to 360nH | 27A |
车载等级 高频电路用电感器
| 产品照片 | 特点 | 系列、类型 | L xW 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
| | MHQ1005P | 1.0x0.5mm [EIA 0402] | 0.6mm | 0.7 to 150nH | 0.11 to 1.2A | 376 KB | 153 KB | 219 KB | |
| | MLG0603P | 0.6x0.3mm [EIA 0201] | 0.33mm | 0.6 to 120nH | 0.08 to 1A | 256 KB | 153 KB | 219 KB | |
| | MLG0603S | 0.6x0.3mm [EIA 0201] | 0.33mm | 0.3 to 180nH | 0.05 to 0.6A | 449 KB | 153 KB | 219 KB | |
| MLG1005S | 1.0x0.5mm [EIA 0402] | 0.55mm | 0.3 to 390nH | 0.05 to 1A | ||||||
| MLG1608 | 1.6x0.8mm [EIA 0603] | 0.95mm | 1 to 1,000nH | 0.07 to 0.6A | ||||||
| | MLK1005 | 1.0x0.5mm [EIA 0402] | 0.6mm | 1 to 330nH | 0.07 to 0.5A | 215 KB | 153 KB | 219 KB | |
车载等级 普通电路用电感器
| 产品照片 | 特点 | 系列、类型 | L xW 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
| | MLF1005 | 1.0x0.5mm [EIA 0402] | 0.55mm | 0.1 to 2.2uH | 0.03 to 0.18A | 371 KB | 153 KB | 219 KB | |
| MLF1608 | 1.6x0.8mm [EIA 0603] | 0.95mm | 0.047 to 33uH | 0.002 to 0.2A | ||||||
| MLF2012 | 2.0x1.2mm [EIA 0805] | 1.05, 1.45mm | 0.047 to 100uH | 0.002 to 0.3A | ||||||
| | NLV25-PFD | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.01 to 100uH | 0.06 to 0.53A | 271 KB | 156 KB | 220 KB | |
| NLV32-PFD | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.01 to 470uH | 0.025 to 0.45A | ||||||
| NLV25-EFD | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.01 to 100uH | 0.06 to 0.53A | 270 KB | 153 KB | 220 KB | | ||
| NLV32-EFD | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.01 to 470uH | 0.025 to 0.45A |
车载等级 去耦电路用电感器
| 产品照片 | 特点 | 系列、类型 | L xW 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
| | MLZ1608 | 1.6x0.8mm [EIA 0603] | 0.95mm | 0.1 to 22uH | 0.055 to 0.7A | 375 KB | 153 KB | 219 KB | |
| MLZ2012 | 2.0x1.2mm [EIA 0805] | 1.05, 1.45mm | 0.1 to 100uH | 0.03 to 1A | ||||||
| | NLCV25-PFD | 2.5x2.0mm [EIA 1008] | 1.9mm | 1 to 33uH | 0.12 to 0.475A | 620 KB | 156 KB | 220 KB | |
| NLCV32-PFD | 3.2x2.5mm [EIA 1210] | 2.4mm | 1 to 330uH | 0.07 to 1A | ||||||
| NLCV25-PFRD | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.1 to 10uH | 0.36 to 1.89A | ||||||
| NLCV32-PFRD | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.1 to 10uH | 0.6 to 2.85A | ||||||
| NLCV25-EFD | 2.5x2.0mm [EIA 1008] | 1.9mm | 1 to 33uH | 0.12 to 0.475A | 622 KB | 154 KB | 220 KB | | ||
| NLCV32-EFD | 3.2x2.5mm [EIA 1210] | 2.4mm | 1 to 330uH | 0.07 to 1A | ||||||
| NLCV25-EFRD | 2.5x2.0mm [EIA 1008] | 1.9mm | 0.1 to 10uH | 0.36 to 1.89A | ||||||
| NLCV32-EFRD | 3.2x2.5mm [EIA 1210] | 2.4mm | 0.1 to 10uH | 0.6 to 2.85A |
车载等级 电源电路用电感器
| 产品照片 | 特点 | 系列、类型 | L x W 尺寸 | 高度(Max.) | 电感 | 额定电流 | 产品目录 | RoHS认证 | REACH认证 | 型号列表 |
|---|---|---|---|---|---|---|---|---|---|---|
| | VLS201610E-CA | 2.0x1.6mm | 0.95mm | 0.47 to 10uH | 0.4 to 1.85A | 834 KB | 155 KB | 220 KB | |
| VLS201612E-CA | 1.2mm | 0.47 to 10uH | 0.47 to 1.9A | |||||||
| VLS2010E-CA | 2.0x2.0mm | 1.0mm | 0.56 to 22uH | 0.33 to 2A | ||||||
| VLS2012E-CA | 1.2mm | 0.47 to 22uH | ||||||||
| VLS252008E-CA | 2.5x2.0mm | 0.8mm | 0.47 to 10uH | 0.41 to 1.2A | ||||||
| VLS252010E-CA | 1.0mm | 0.55 to 2.5A | ||||||||
| VLS252012E-CA | 1.2mm | 0.47 to 10uH | 0.59 to 2.15A | |||||||
| VLS252015E-CA | 1.5mm | 1 to 10uH | 0.66 to 1.75A | |||||||
| VLS3010E-CA | 3.0x3.0mm | 1.0mm | 1 to 22uH | 0.38 to 1.6A | ||||||
| VLS3012E-CA | 1.2mm | 1 to 47uH | 0.31 to 1.9A | |||||||
| VLS3015E-CA | 1.5mm | 1 to 47uH | 0.32 to 2A | |||||||
| VLS4012E-CA | 4.0x4.0mm | 1.2mm | 1 to 47uH | 0.41 to 2.5A | ||||||
| | VLF252010MT-CA | 2.5x2.0mm | 1.0mm | 0.47 to 22uH | 0.26 to 1.84A | 652 KB | 108 KB | 220 KB | |
| VLF252012MT-CA | 1.2mm | 0.28 to 1.89A | ||||||||
| VLF252015MT-CA | 1.5mm | 0.28 to 1.85A | ||||||||
| VLF302510MT-CA | 3.0x2.5mm | 1.0mm | 1 to 22uH | 0.38 to 2A | ||||||
| VLF302512MT-CA | 1.2mm | 0.43 to 1.91A | ||||||||
| VLF302515MT-CA | 1.5mm | 0.47 to 22uH | 0.41 to 2.88A | |||||||
| VLF403210MT-CA | 4.0x3.2mm | 1.0mm | 1 to 22uH | 0.46 to 2.23A | ||||||
| VLF403212MT-CA | 1.2mm | 0.54 to 3A | ||||||||
| VLF403215MT-CA | 1.5mm | 0.65 to 3.01A | ||||||||
| VLF504010MT-CA | 5.0x4.0mm | 1.0mm | 0.68 to 22uH | 0.61 to 3.4A | ||||||
| VLF504012MT-CA | 1.2mm | 1 to 22uH | 0.8 to 3.19A | |||||||
| VLF504015MT-CA | 1.5mm | 0.93 to 3.61A | ||||||||
 | | CLF6045NI-D | 6.0x6.3mm | 4.8mm | 1 to 470uH | 0.28 to 4.8A | 1 MB | - | ||
 | | CLF7045-D | 6.9x7.2mm | 4.8mm | 1 to 470uH | 0.41～6.5A | 240 KB | 153 KB | 220 KB | |
4、TDK电感规格书
TDK电感规格书请点击上面目录中相应TDK电感种类或系列对应最右边的链接查看或下载（来自TDK官网的文件，绝对安全）,如果无法查询或下载请联系我们客服帮您。
5、TDK电感官网和联系方式
TDK电感官网:www.tdk.co.jp
